挪威靈魂桑拿房

2020-08-13 10:42:56         來源:Paul Johann Magnus     瀏覽次數:

  Project name:   A Sauna with a soul

  Company name:  Paul Johann Magnus - Arkitektur & Håndverk

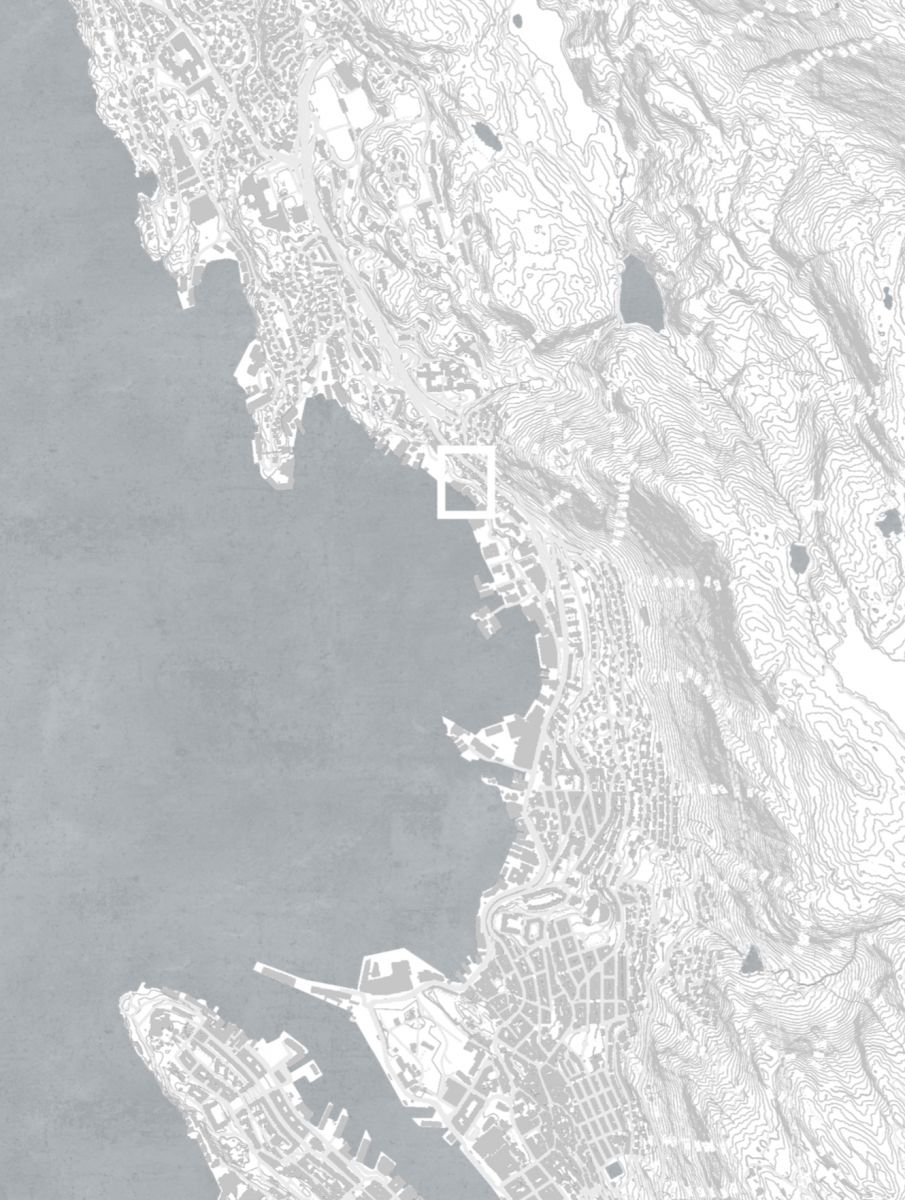

  Project location:  Bergen, Norway

  Completion Year:  2018

  Other participants:   Lars Rumpel

  Photo credits:  © Lars Rumpel / Paul Johann Magnus



  項目名稱:靈魂桑拿房

  設計公司:Paul Johann Magnus

  項目位置:挪威卑爾根

  完成年限:2018

  設計團隊:Lars Rumpel

  圖片來源:© Lars Rumpel / Paul Johann Magnus

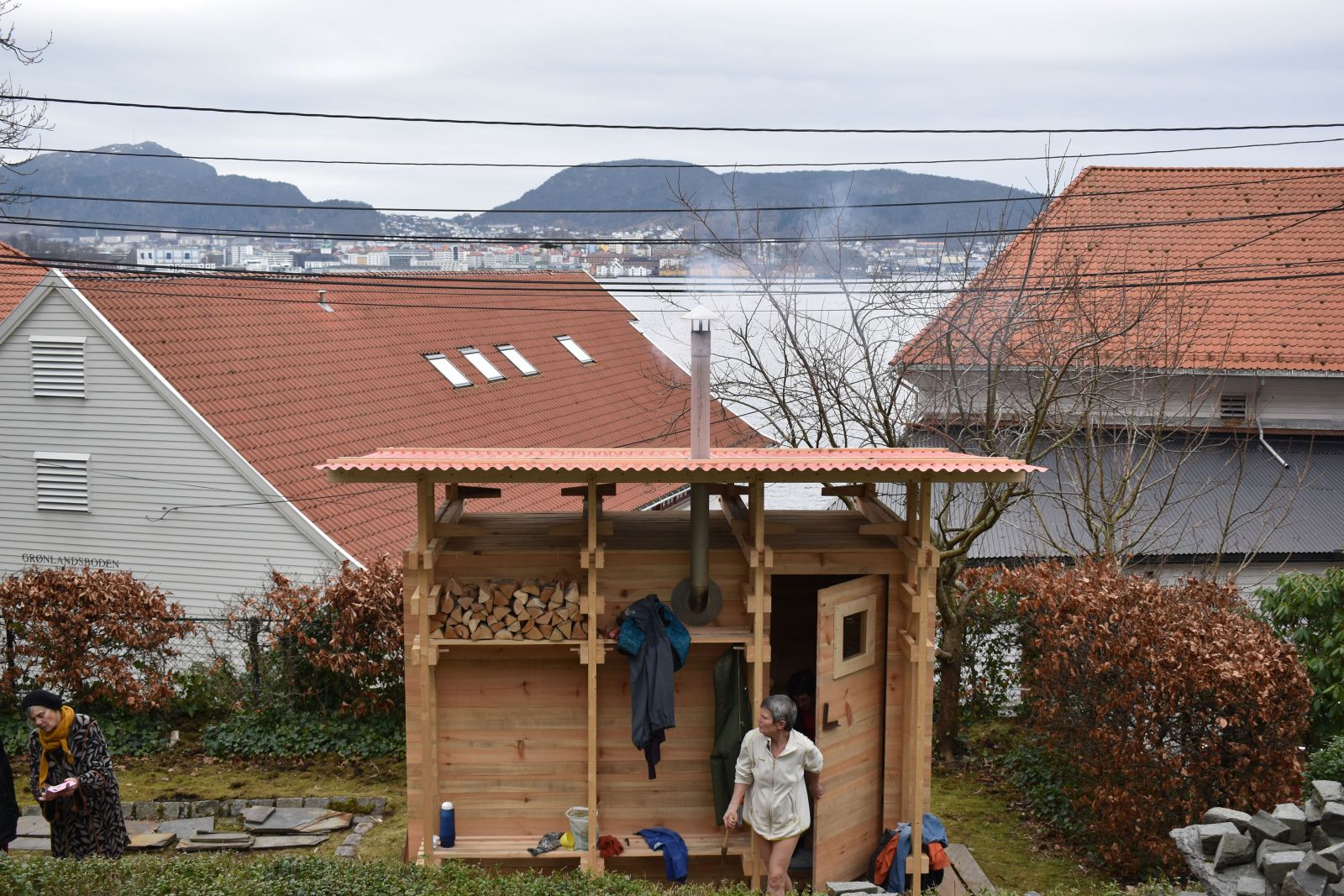

  The small sauna was created during an exchange semester at the Bergen School of Architecture and was designed and built by me in cooperation with Lars Rumpel. The semester course, led by Marco Casagrande, dealt with traditional and engineered wooden architecture in Scandinavia. The idea of a 1:1 building was born on a field trip to Finland and got inspired by the examination and translocation of an old log house. The work on the project begun in October 2018 and was already tried out for the first time before Christmas by a local group of female winter swimmers “Lørdagspikene”, who meet every Saturday along the coastline.

  這個小型桑拿房由Paul Johann Magnus與Lars Rumpel合作設計并建造完成。設計者在芬蘭的考察中誕生了設計這個1:1 桑拿房的想法。這個小屋主要服務當?shù)孛恐芰鶃砗_叺呐远居斡具\(yùn)動員們。

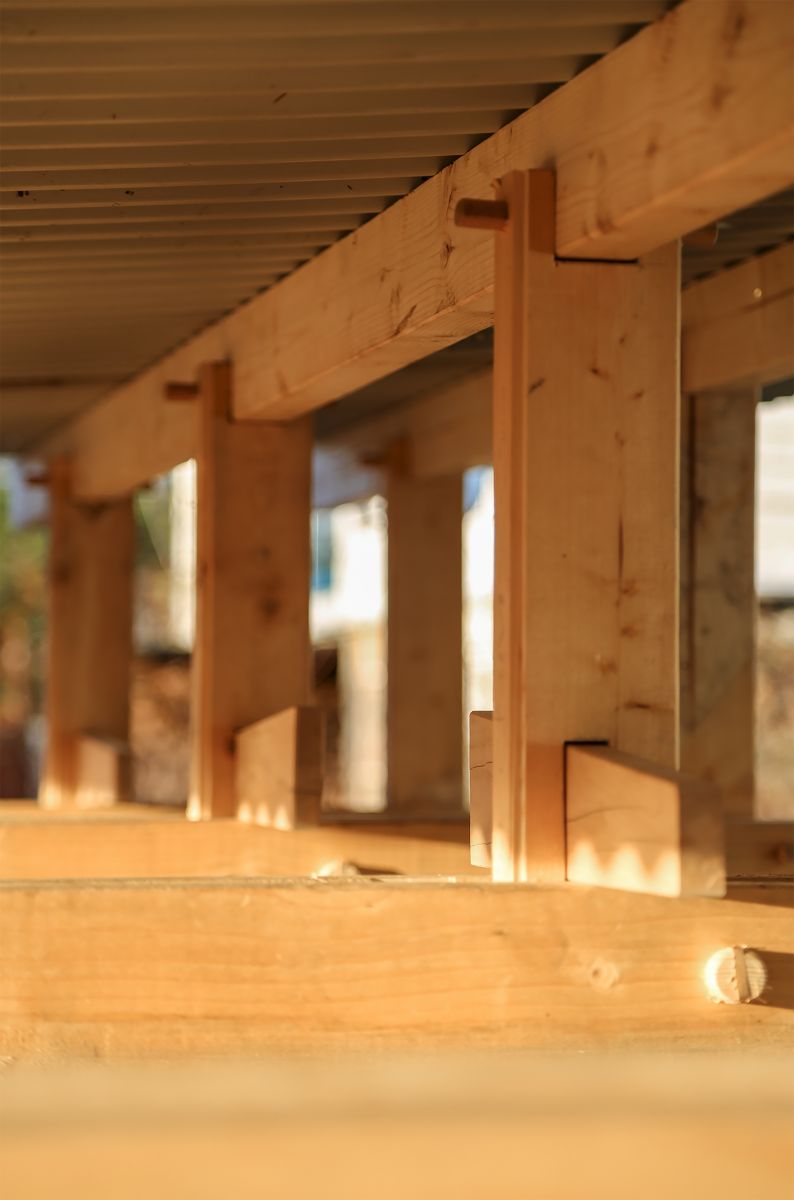

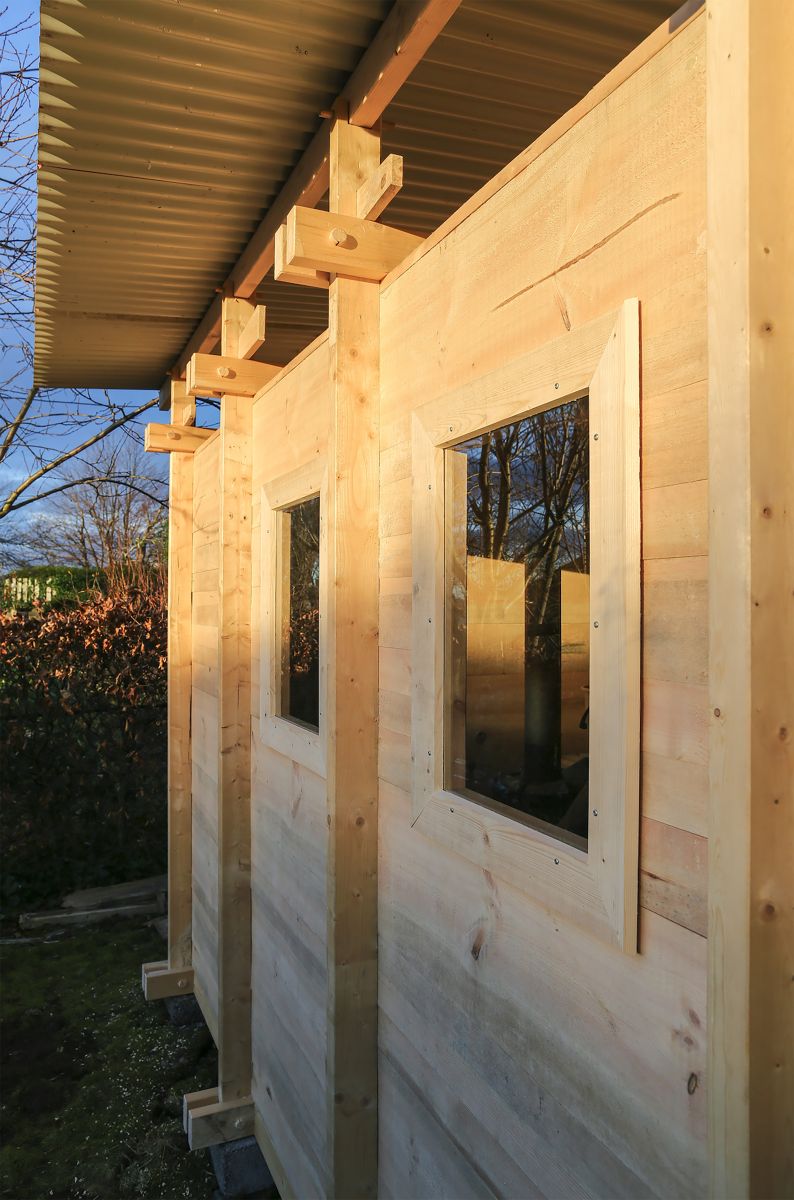

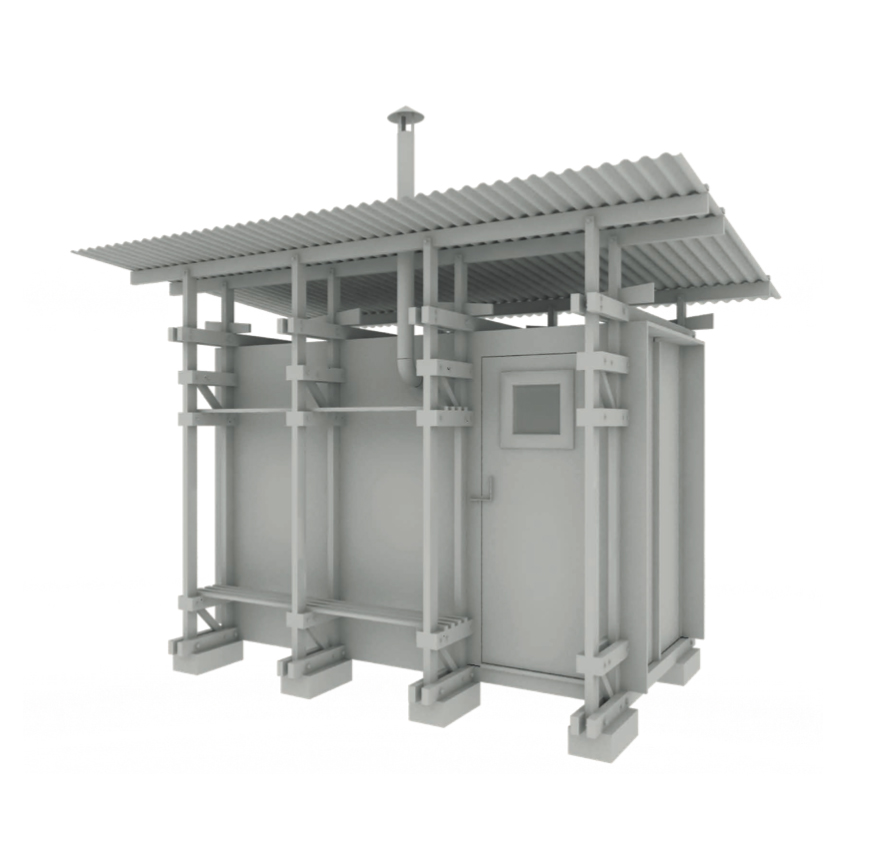

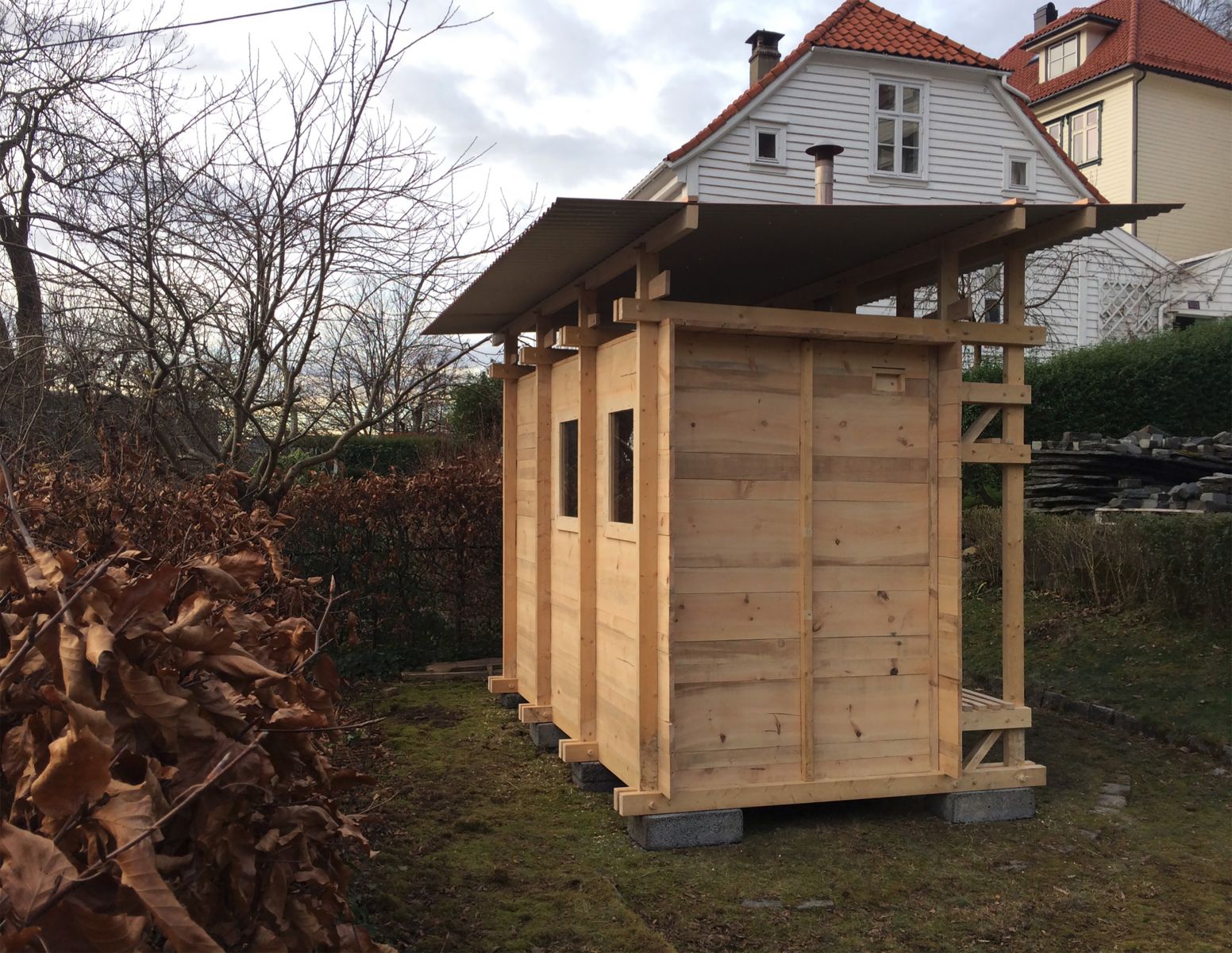

  100% wood - As a complete wooden construction, the building is intended to be a furniture and, therefore, uses appropriate joining methods. Instead of nails, screws and glue the main structure is kept together by wooden pegs, wedges and dovetail joints. The sauna consists of a closed core of freshly self-sawn boards, surrounded and stabilized by an outer frame structure made out of dry timber beams. These frames support the lightweight roof made out of reused corrugated metal sheets. The fresh boards are Norwegian pine from the nearby forest on mountain Fløyen. They were sawn into rough-cuts at the Architecture School and later mounted in random widths. The dry spruce of the external structure is standardized timber and also recycled material from a previous task.

  設計師用百分百純木材打造,采用楬、楔子和燕尾榫傳統工藝將不同的部件連接在一起,而非采用現代的鐵釘,螺絲等。主木材來自挪威弗洛延山附近的森林,是本土的松樹,外部墻面木材是云杉,之前項目的回收材料再利用。

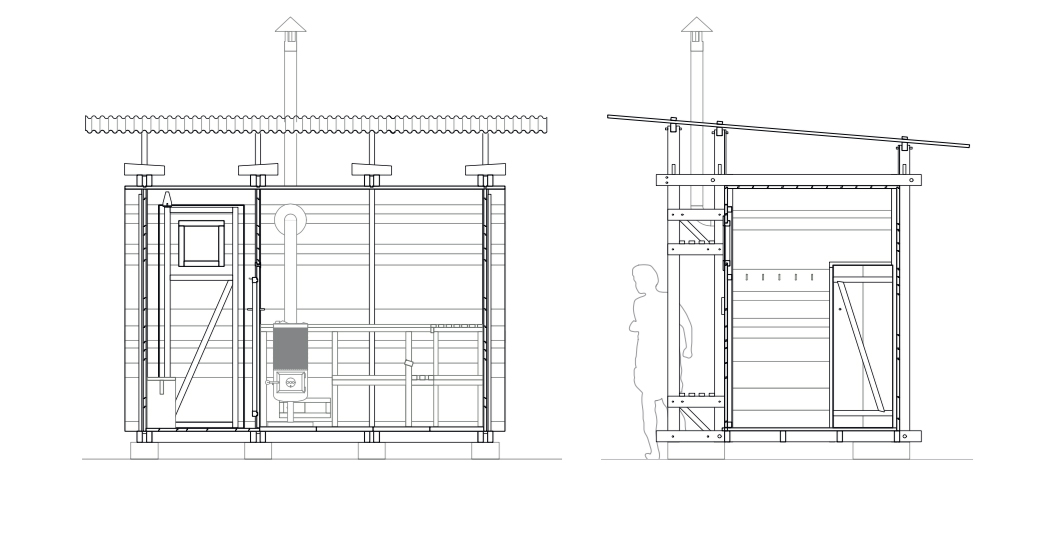

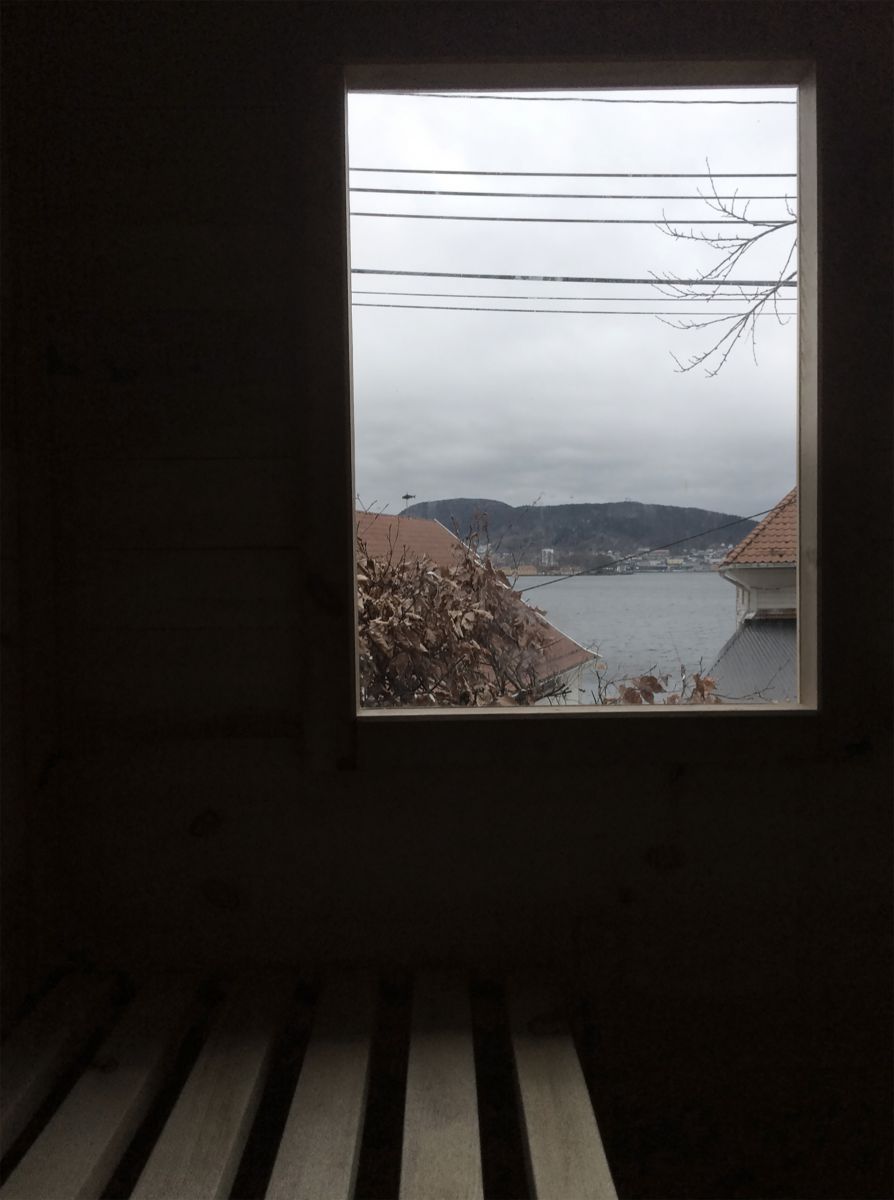

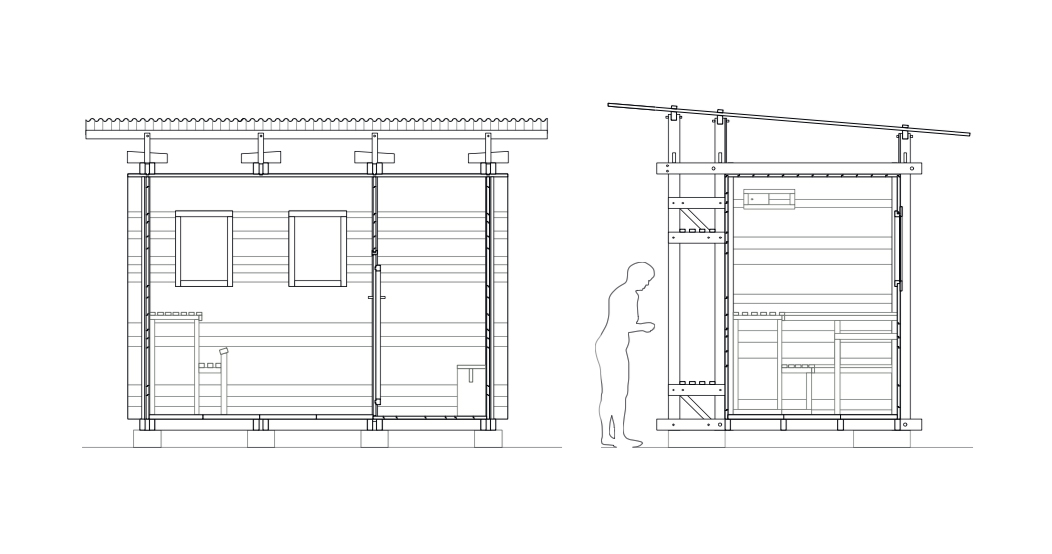

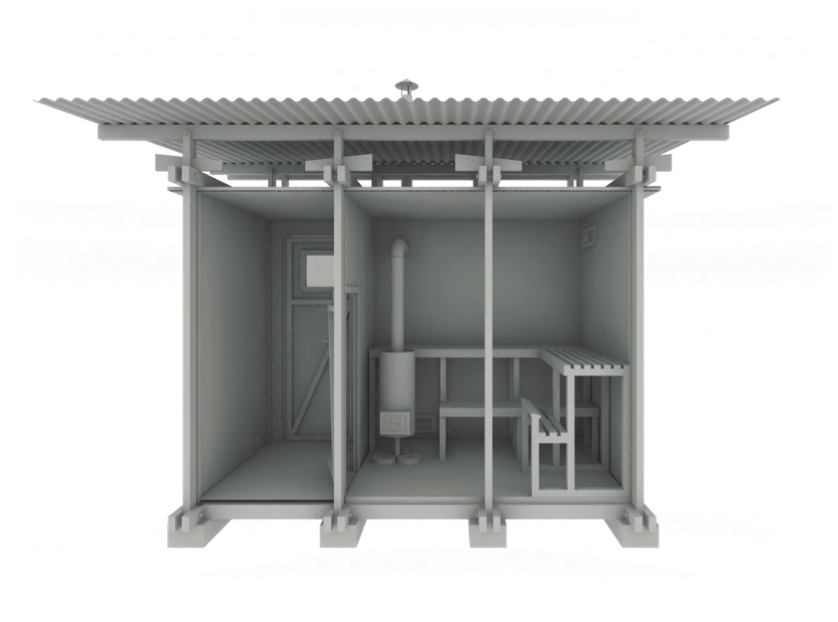

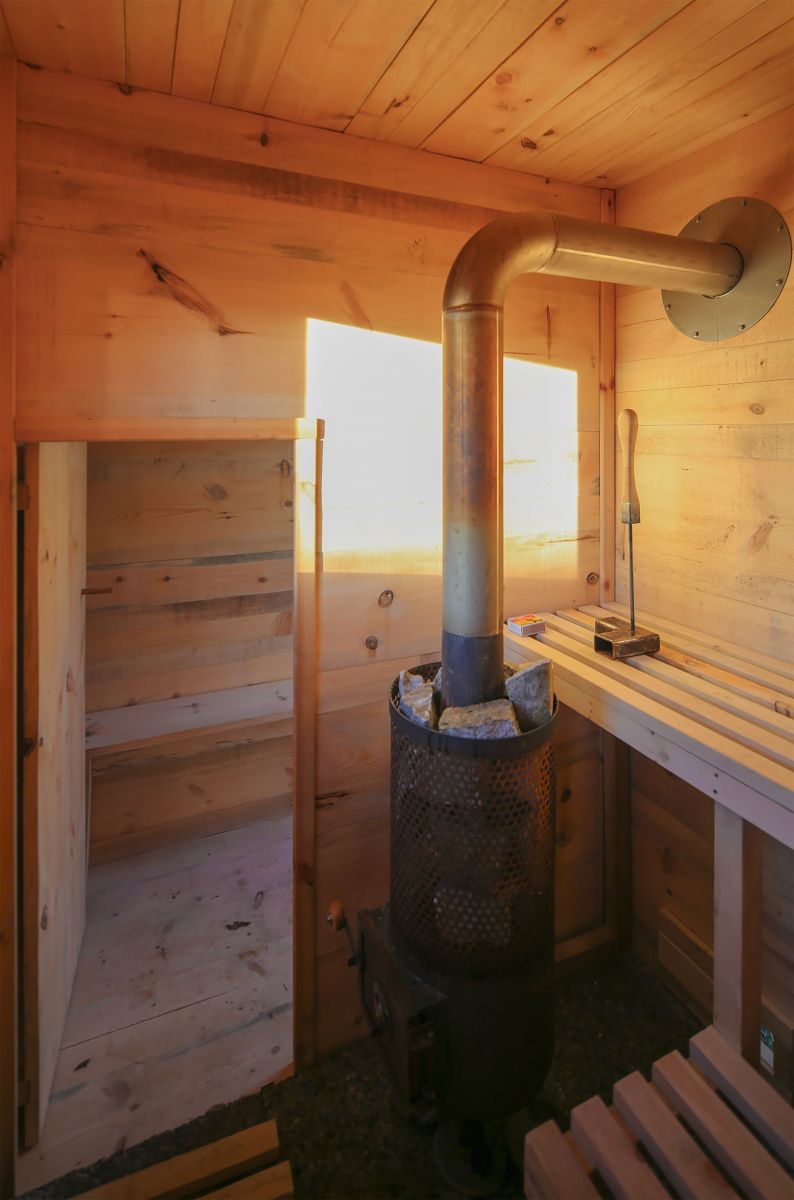

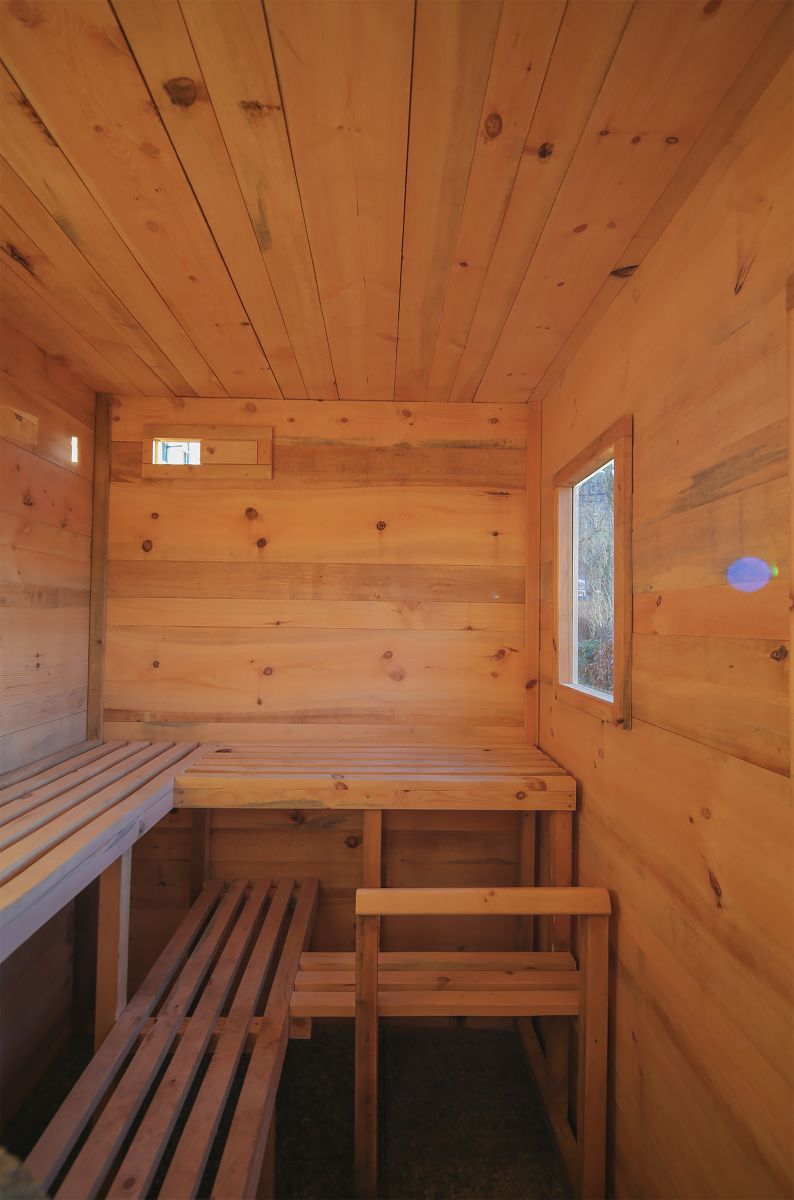

  The rectangular floor plan is divided into an entrance area and the sauna room in a ratio of 1:2. The integrated seating and storage spaces on the outer structure offer additional qualities. An inviting entrance door with a small window leads to the changing room including hangers and a bench. A lower door connects the entrance room to the sauna, the low doorframe prevents hot air from escaping. This room is illuminated by two fixed windows and can be ventilated by the help of two ventilation flaps. One flap is mounted low behind the oven for sufficient oxygen supply and the other one is located on the opposite wall below the ceiling to regulate the exhaust air. The floor is made out of concrete panels which on one hand weigh the whole building down and also enable the water to seep through the floor. The L-shaped bench allows the seating on two different levels and includes the granite filled wooden stove. Furthermore, a stainless-steel pipe leads the smoke through the side wall to the outside.

  平面圖按照1:2比例分為入口和桑拿室。座椅和儲物空間設置在了桑拿房外部。更衣室設有小窗,屋內含衣架和長凳,另外較低的門進入是桑拿房,這個高度是防止熱氣外散。房間采光來自兩個窗戶,借助兩個通風閥來流通空氣。地板由混凝土板制成,可以整體下壓這個木屋,另外還可以滲水,L形長椅設置成不同的高度,木爐配有花崗巖填充,不銹鋼管將煙氣引到外部。

  The building can be loaded onto a truck by a crane or a forklift and weighs less than a ton. Alternatively, to save space while transporting, it can also be demounted into individual wall-sections by removing the wooden nails.The design process combined traditional knowledge and craftsmanship but also an open experimental approach. Latest methods were challenged, and new solutions were found by trials. Therefore, the sauna can be seen as an experimental building which will provide further results and insights only as time passes.

  Nonetheless, the sauna inherits its own vitality, it also creates social life and, thus, preserves a soul.

  這個桑拿房可運輸、可拆卸,總重量不到一噸可以通過起重機或者叉車裝到卡車上。也可以拆卸成木板來節省運輸空間。桑拿房的設計既結合了傳統工藝,又采用現代的實驗方法,可以把它看成一座實驗性的建筑。隨著時間的流逝,桑拿房會給出解答。

  桑拿房有自己的生命力,創造了社交生活,因此我們稱之為靈魂桑拿。
